LPDDR5

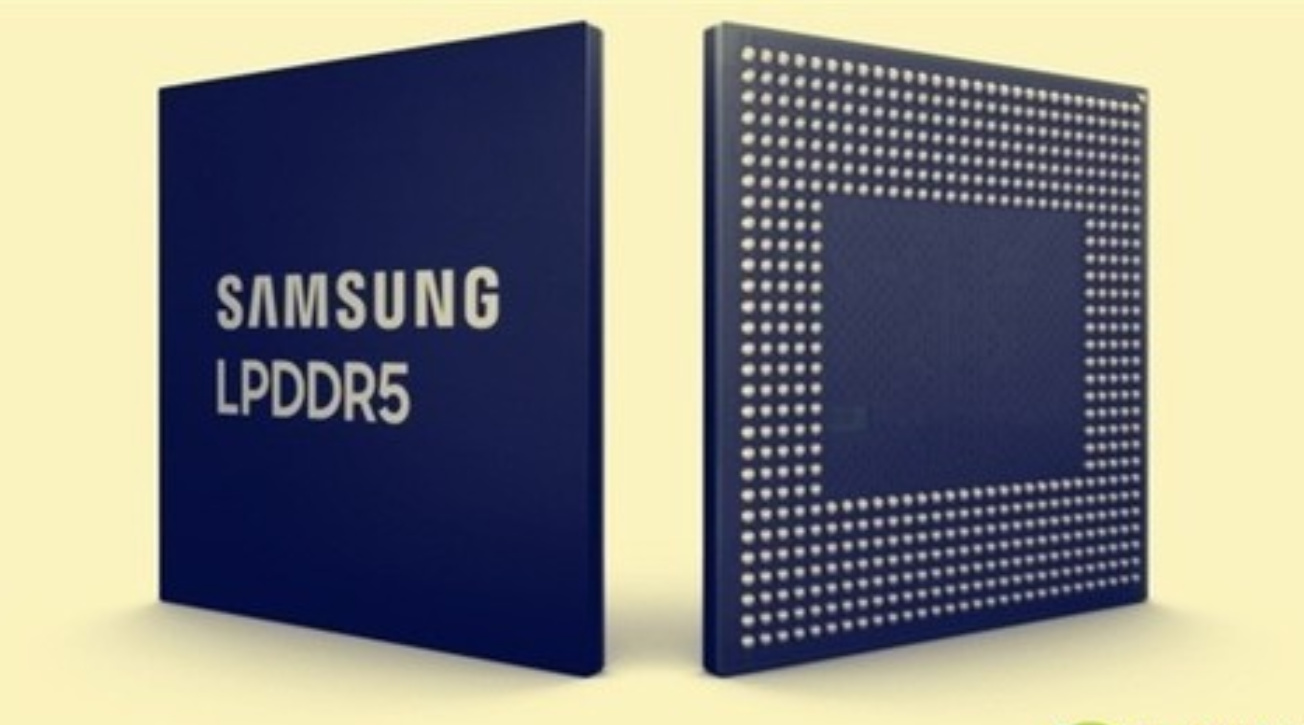

The image shows Samsung original LPDDR5 low-power DRAM: the front features the 'SAMSUNG LPDDR5' logo, while the back is an FBGA (Finned Ball Grid Array) packaging with densely packed solder balls for motherboard mounting. The compact packaging is suitable for the slim motherboards of smartphones and tablets. It belongs to the mobile-specific low-power memory standard, an upgraded iteration of LPDDR4X, and is currently the mainstream memory solution for flagship mobile devices.
Core Hardware Specifications
Data Transfer Rate
The base LPDDR5 achieves a maximum speed of 6400 Mbps. Its single-channel bandwidth is approximately 50% higher than that of LPDDR4X, providing smooth support for 5G, AI computing, 4K/8K video, and high-frame-rate scenarios in large mobile games. Samsung Gl...
Voltage and Power Optimization
The I/O voltage is reduced to 0.5V, compared to 0.6V for LPDDR4X. Under the same load, power consumption is lowered by approximately 20%, effectively reducing device heat generation and extending battery life. It features multi-level dynamic voltage scaling technology, which automatically enters an ultra-low power mode when idle.
Architecture Upgrade
The number of Banks is increased from 8 groups in the LPDDR4 series to 16 groups, significantly improving parallel read and write efficiency. This results in lower latency for multi-task background switching and real-time AI image processing. Samsung Gl...
Capacity Coverage
Single-chip capacity ranges from 8Gb to 128Gb (1GB to 16GB), supporting multi-chip stacking. Flagship smartphones can achieve system memory configurations of 16GB and 24GB. Additionally, there is an automotive-grade wide-temperature version with an operating range of -40℃ to 125℃.
